Studio Sub 12 Specifications:

The SUBMUTE is a simple mono on/off footswitch with XLR connectors that will work with your subwoofer. It is configured as a latching Push On; Push Off switch, meaning that the switch must be pushed and released to turn the signal on or off through the box. Each time the signal is pressed and released the signal is changed from one condition to the other.

The SUBWOOFER PROS Studio Sub 12 is a self-powered high fidelity subwoofer system employing bass management, hi pass filtered outputs, and a sealed box front firing 12” high excursion cone low frequency driver. The use of the INFRA™ technology (developed by Bag End) matched to a 700 Watt power amplifier and Infra™ cone driver provides flat acoustical response down to 8 hertz. Maximum half space output level at 40Hz from a single Studio Sub 12 exceeds 108 dB SPL @ 1 meter. Six inputs provide flexibility with 5 individual inputs and hi pass outputs and a dedicated LFE input for 5.1 surround applications. The 5 individual channel inputs sum into the subwoofer and the LFE input sums through with a separate level control for level matching. Five High Pass line level filtered outputs are provided for all 5 surround monitors via built-in bass management. A line level output is provided to drive matching “slave” subs for increased SPL output or improved room behavior. The unique Dynamic Filter™ protection system maintains undistorted bass without using compression despite the input level.

The SUBWOOFER PROS Studio Sub 18 is a self-powered high fidelity subwoofer system employing bass management, hi pass filtered outputs, and a sealed box front firing 18” high excursion cone low frequency driver. The use of the INFRA™ technology (developed by Bag End) matched to a 700 Watt power amplifier and Infra™ cone driver provides flat acoustical response down to 8 hertz. Maximum half space output level at 40Hz from a single Studio Sub 18 exceeds 114 dB SPL @ 1 meter. Six inputs provide flexibility with 5 individual inputs and hi pass outputs and a dedicated LFE input for 5.1 surround applications. The 5 individual channel inputs sum into the subwoofer and the LFE input sums through with a separate level control for level matching. Five High Pass line level filtered outputs are provided for all 5 surround monitors via built in bass management. A line level output is provided to drive matching “slave” subs for increased SPL output or improved room behavior. The unique Dynamic Filter™ protection system maintains undistorted bass without using compression despite the input level.

SUB MUTE
Studio Sub 18 Specifications:

SubMUTE rear

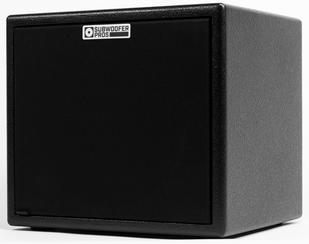

STUDIO SUB 12

Enclosure: 18mm 13 ply birch plywood
Finish: Black Ro Tex™ True water born environmental finish
Grille: Black cloth grille
Low Frequency Components: EL-12B Transducer, 12” Cone​
Input Connector: 6 Balanced XLR female line level
Input Impedance: 15K Ohms
Input CAL Sensitivity: +4 dBu
Maximum Continuous Amplifier Power: 700 W into 4 Ohms
High Pass Filter: 5 High pass outputs

Low Pass Filter: Switchable 95Hz or 60Hz
Slope: 12 dB/octave -6 dB at 95 Hz
Overload Protection: Internal Dynamic Filter™ protection
LED Indicators: Green- power on, Red – Threshold exceeded
Mains Voltage Requirements: 115 v or 230 v auto switched internally
Frequency Response: ±3 dB 8 Hz to 95 Hz Infra™ system.
Low Frequency Limit: 8 Hz or 20Hz, switchable.
Max SPL: 108dB @ 1 meter
Studio Sub 12 Dimensions: 15.5”h x 18”w x 15”d (39 cm x 46 cm x 41 cm)
Studio Sub 12 Weight: 47 lbs (22 kg)

DATA SHEET

SUBWOOFER PROS PRODUCTS

Enclosure: 18mm 13 Ply Birch Plywood​
Finish: Black Ro Tex™ True water born environmental finish​
Grille: Black cloth grille
Low Frequency Components: EL-18R Transducer, 18” Cone​
Input Connector: 6 Balanced XLR female line level
Input Impedance: 15K Ohms
Input CAL Sensitivity: +4 dBu
Maximum Continuous Amplifier Power: 700 W into 4 Ohms
High Pass Filter: 5 – High pass outputs

Low Pass Filter: 95Hz or 60Hz switchable
Slope: 12 dB/octave -6 dB at 95 Hz
Overload Protection: Internal Dynamic Filter™ protection
LED Indicators: Green- power on, Red – Threshold exceeded
Mains Voltage Requirements: 115V or 230V, auto switched internally
Frequency Response: ±3 dB 8 Hz to 60 Hz Infra™ system.
Low Frequency Limit: 8 Hz or 20Hz via switch
Max SPL: 114dB SPL @ 1 meter​
Studio Sub 18 Dimensions: 23.5”h x 21.25”w x 18.5”d (60 cm x 54 cm x 47 cm)​
Studio Sub 18 Weight: 75 lbs (34kg)

DATA SHEET

STUDIO SUB 18
SUB MUTE
SubMUTE
